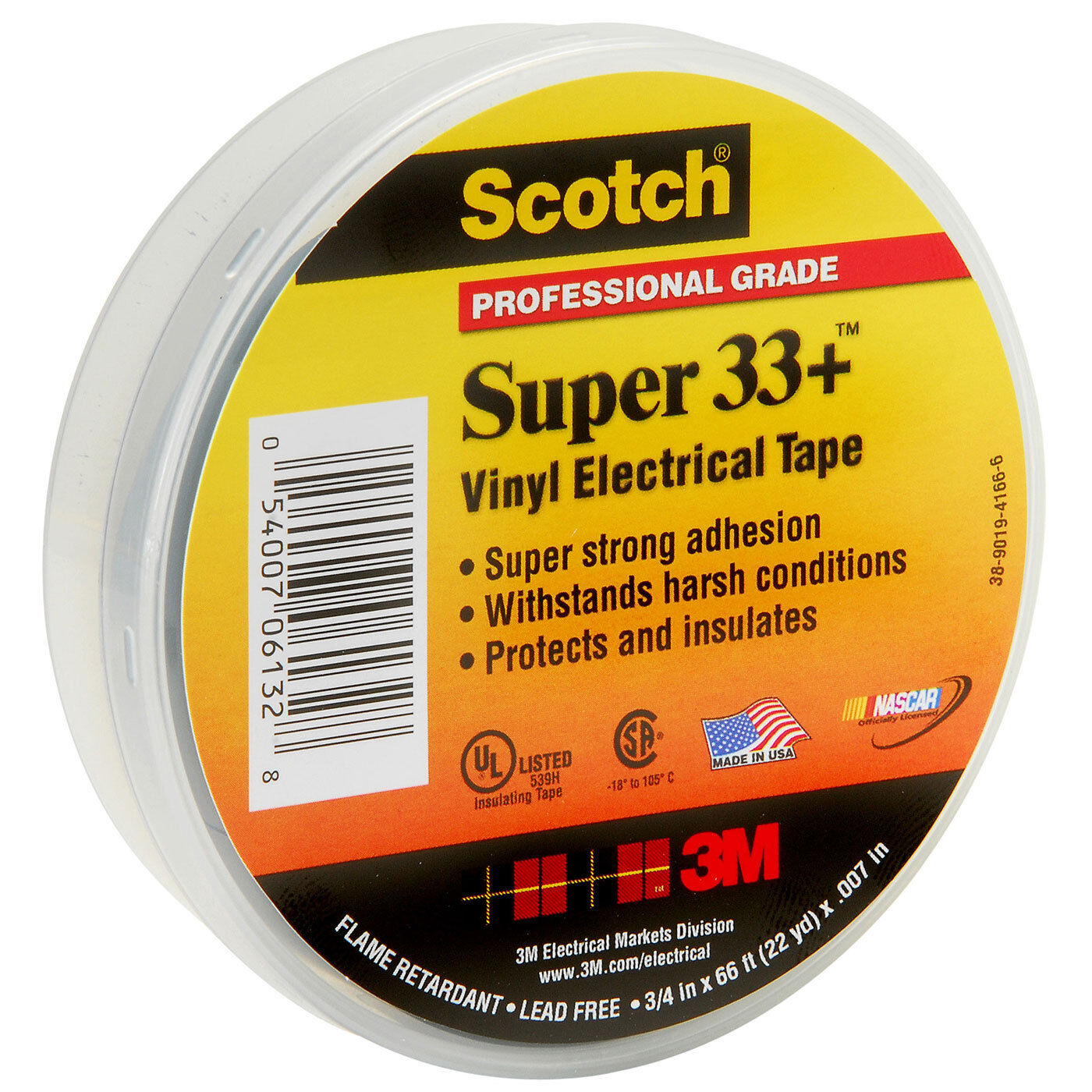

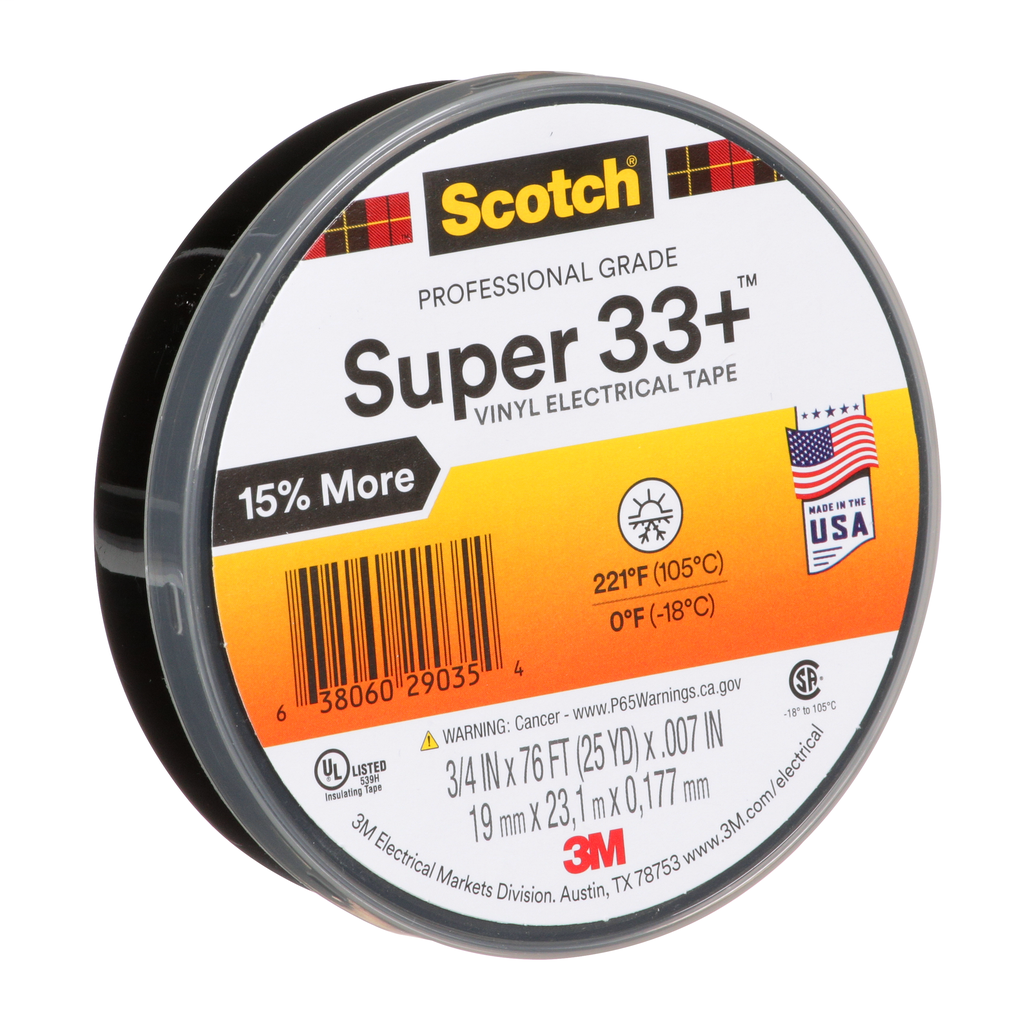

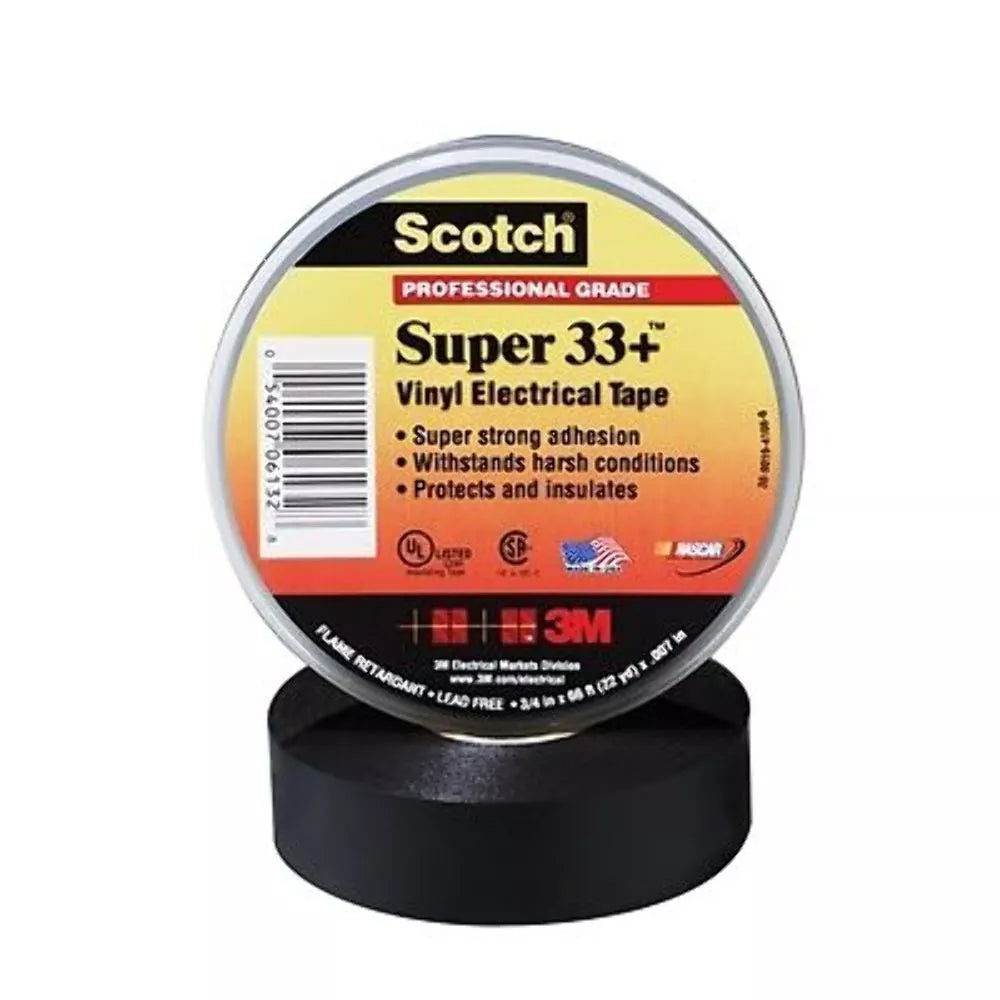

Scotch Vinyl Electrical Tape, 3/4 in. x 66 ft 3M33+

Scotch Super 33+ Vinyl Electrical Tape is a black, professional grade, nominal 7-mil (0.178 mm) thick electrical insulating tape composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, rubber-based pressure-sensitive adhesive.

Commonly used in these types of applications:

• UL510: As primary insulation on applications up to 600V at max temperature of 80°C (176°F) and min temperature of -10°C (14°F) on joints and splices in wires and cables in accordance with NFPA 70, National Electrical Code
• CSA C22.2 No.197: As primary insulation on applications up to 1000V at max temperature of 105°C (221°F) and min temperature of -18°C (0°F) on joints and splices in wires and cables in accordance with Canadian Electrical Code, Part 1
• IEC 60454-3-1: Classification Type 7, Designation IEC 60454-3-1-7/F-PVCP/90 for thermal index of 90°C (194°F) and min temperature rating of -18°C (0°F)
• Industrial, Commercial and Residential environments
• Where Flame Retardant and Sunlight, Cold Resistance rating is required – UL510
• Cable jacket repair (up to 600V (UL) / 1000V (CSA) as Primary Insulation) and as mechanical protection when overwrapping rubber splicing, and mastic tapes used on LV/MV/HV joints and splices
• Critical indoor and outdoor operations as determined by end-user where use of a general use vinyl electrical tape is not recommended
• Where compatibility with most solid dielectric cable insulations, rubber and synthetic splicing compounds is required
• Where reducing moisture ingress is needed, best results achieved when used as an overwrap in combination with a rubber splicing or mastic tape product
• For harnessing and bundling of wires and cable where minimum bulk is required

Country of Origin: USA
