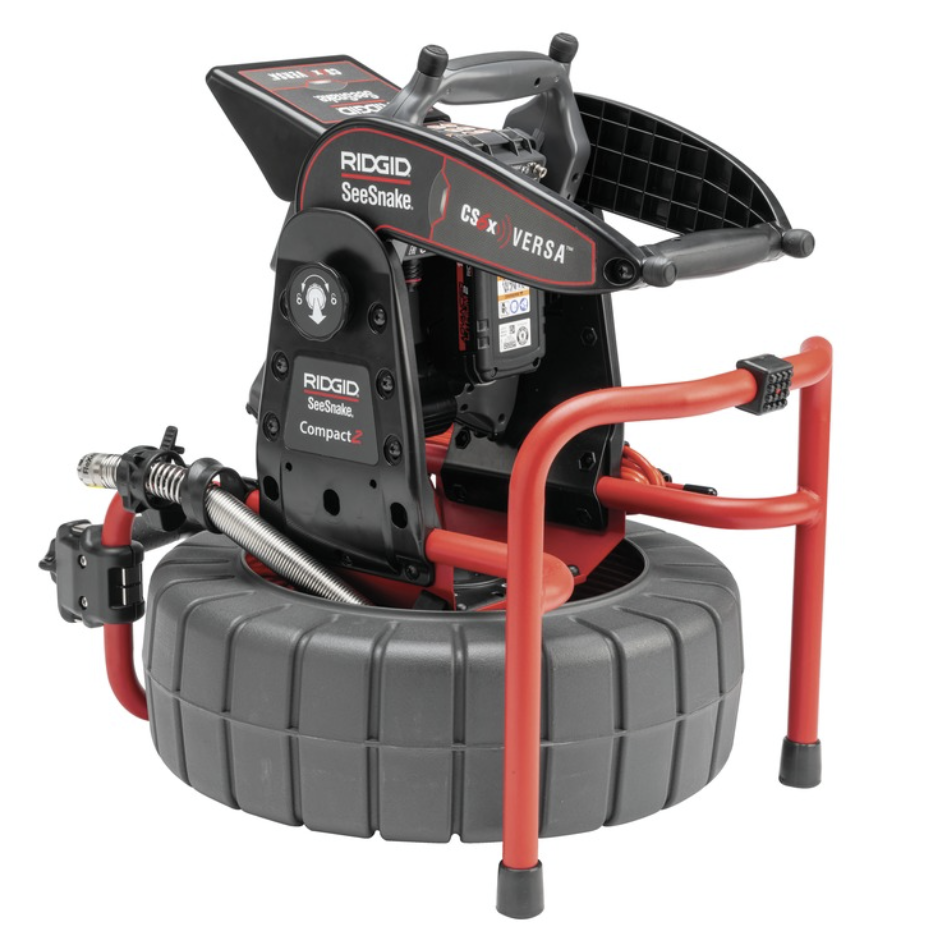

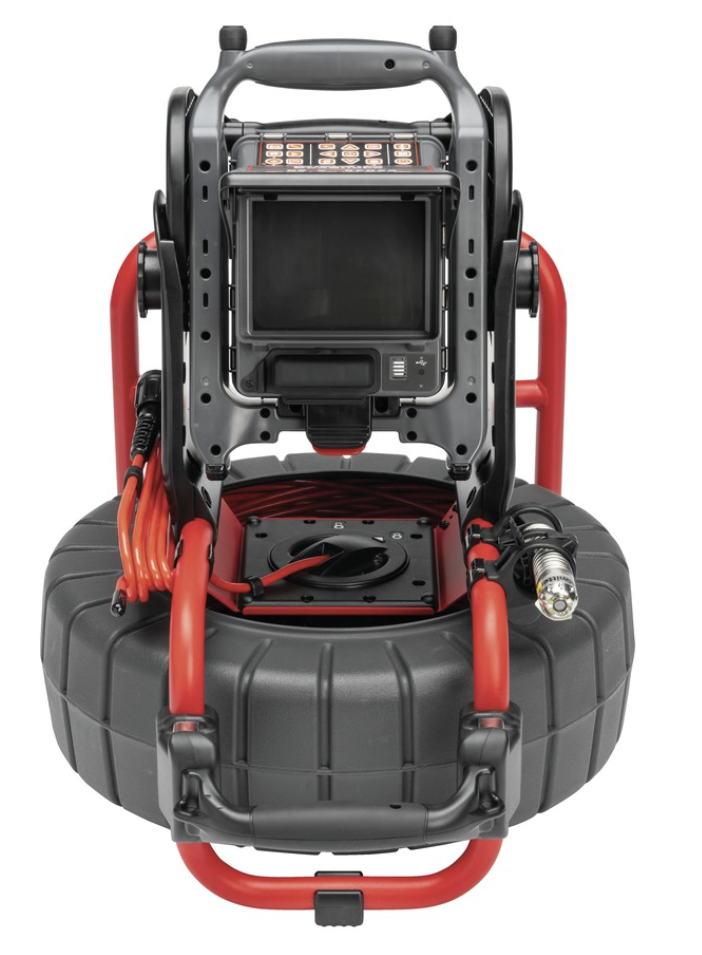

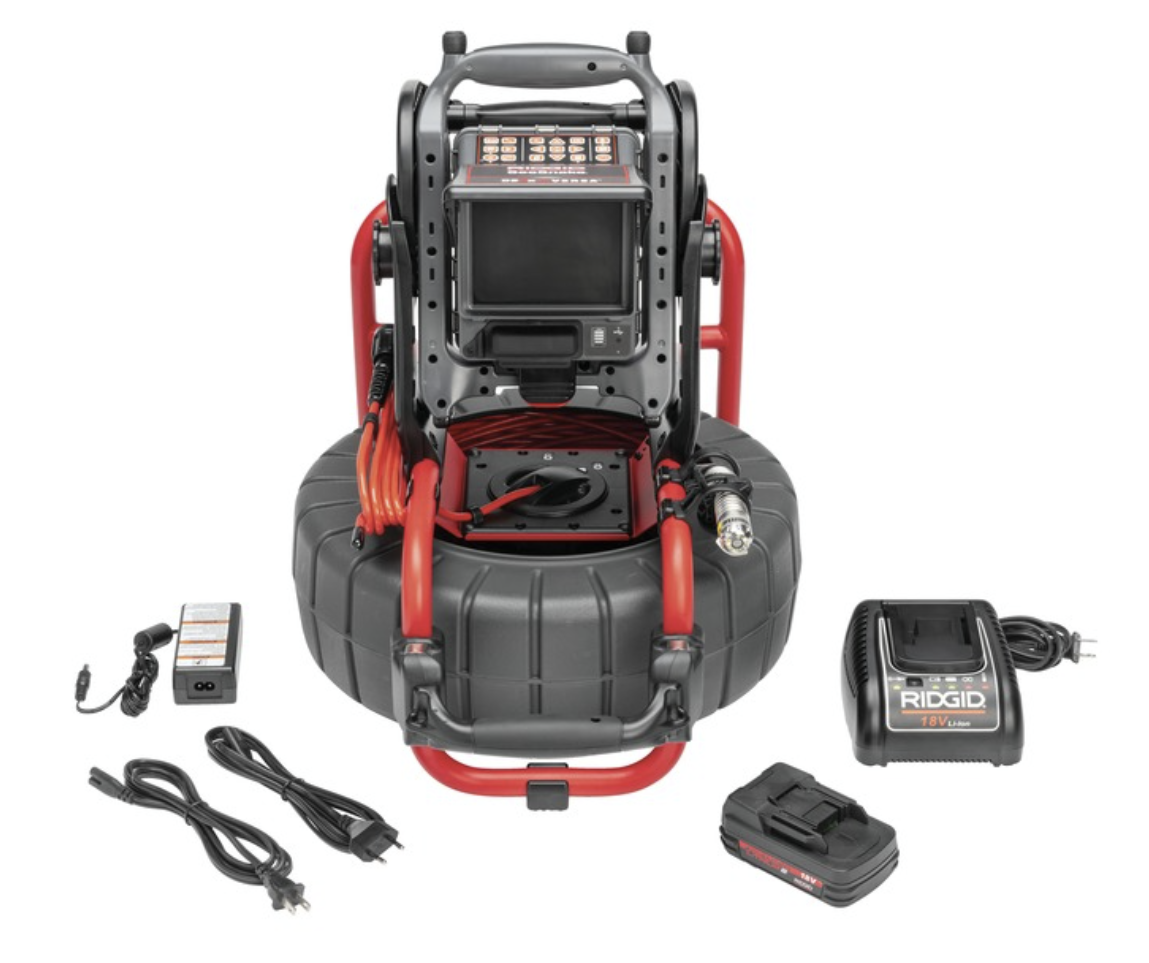

SeeSnake® Compact2 Reel with Self-Leveling Camera (NTSC)
SeeSnake® Compact2 Reel with Self-Leveling Camera (NTSC)
SKU:RID48093
Regular price
$1.00 USD
Regular price
Sale price
$1.00 USD
Unit price
/
per
Shipping calculated at checkout.
Share
In stock
Features
- Quick-release docking system for fast, efficient job setup with the SeeSnake CS6x Versa monitor.
- Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable.
- Powerful FlexMitter® sonde has long range and preserves the camera's ability to make turns.
- The Compact 2 comes in the popular Compact formfactor, combining a small package and all-in-one monitor capability (when used with the SeeSnake® CS6x Versa monitor).
- The Compact 2 has 100' (30 m) of flexible push cable, providing good ability to fit in smaller diameter pipes and navigate through tight turns.
Specifications
| Line Capacity | 1.5" to 6" (40 mm to 150 mm) |
| Push Cable Length | 100' (30 m) |
| Push Cable Diameter | 0.27" (6.7 mm) with 3 mm [0.12 in] Fiberglass core |
| Push Cable Bend Minimum Radius | 2.5" (63.5 mm) |
| Weight (without batteries) | 16.6 lbs. (7.5 kg) |
| Size | Length 25" (63.5 cm), Width 14" (35.6 cm), Height 17" (43.2 cm) |
| Camera Type | 1" (25 mm) Self-Leveling |
| Resolution | 656 x 492 (NTSC), 768 X 576 (PAL) |
| Light Source | 6 LEDs |
| Sonde | 512 Hz |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 14°F to 158°F (-10°C to 70°C) |
| Ingress Protection without Monitor | IPx5 |
