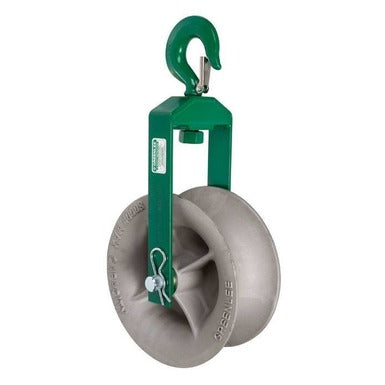

SHEAVE ASSY,HOOK-12" (8012)

Product Features

• 12" (304.8 mm) outside diameter hook-type sheave for changing cable direction during conduit and raceway pulls
• Also used to redirect the puller tailing rope so the operator can stand clear of the high-tension line approaching the puller
• 8,000 lb (35.8 kN) maximum rated capacity — nearly double the pull rating of Greenlee's 4,000 lb sheave line
• Strong, welded steel frame built for repeated heavy-duty pulls
• Forged steel closure-type hook with a 1" (25.4 mm) opening for quick, secure hanging
• All three sheaves are aluminum alloy with self-lubricating bearings — no field greasing required
• 5" (127 mm) wide sheave face with an R 2.25" groove profile supports large-diameter cable without pinching the jacket
• 3-7/8" (98.4 mm) inside radius keeps the bend within spec on directional pulls
• Compatible with Greenlee UT8, UT5, 6001, UT4, and UT2 cable pullers
• Always select a sheave with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
• Part of Greenlee's cable pulling sheave and roller line

Specifications

• Style: Hook-Type Sheave Assembly (Cable Pulling)
• Brand: Greenlee
• Model / Cat. No.: 8012
• Outside Diameter: 12 in (304.8 mm)
• Inside Radius: 3-7/8 in (98.4 mm)
• Pitch Diameter Range: 7.75 in – 11.75 in (196.85 – 298.45 mm)
• Groove Radius: R 2.25 in (57.15 mm)
• Sheave Width: 5 in (127 mm)
• Number of Sheaves: 3
• Sheave Material: Aluminum alloy with self-lubricating bearings
• Frame: Welded steel
• Hook: Forged steel, closure-type, 1 in (25.4 mm) opening
• Keyway: Through hole
• Maximum Rated Capacity: 8,000 lb (35.8 kN)
• Compatible Pullers: Greenlee UT8, UT5, 6001, UT4, UT2
• Includes: 50700 Roll Pin; 00838 Sheave Pin; 50302 Sheave Pin Clip; 00843 Sheave Unit; 00854 Yoke Frame
• Weight: 28 lb (12.7 kg)
• UPC: 0783310008729
• Greenlee Benefit: 8,000 lb three-sheave hook assembly that redirects heavy cable — and keeps the operator out of the line of the pulling rope
