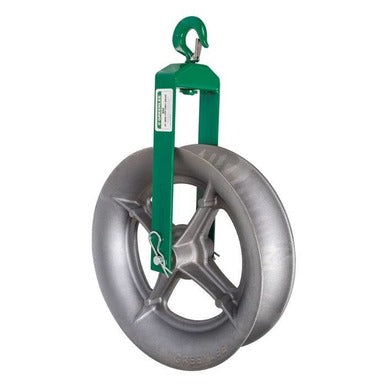

SHEAVE,CABLE 18" HOOK TYP(652)

Product Features

• 18" (457.2 mm) diameter hook-type sheave with a 7" (177.8 mm) minimum bend radius for guiding cable during a pull
• Strong, welded steel frame built to hold up under repeated heavy pulls
• Forged steel closure-type hooks with a 1" (25.4 mm) opening for fast, secure hanging on conduit, strut, or rigging points
• 5" (127 mm) wide aluminum alloy sheaves with self-lubricating bearings — smooth rolling with no field greasing required
• R 3.00" groove profile supports large-diameter cable without pinching or flattening the jacket
• Wide sheave face and generous radius reduce sidewall pressure and jacket damage on directional pulls
• Designed to work with Greenlee Easy Tugger and Tugger cable pullers
• Always select a sheave with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
• Part of Greenlee's cable pulling sheave and roller line

Specifications

• Style: Hook-Type Sheave Assembly (Cable Pulling)
• Brand: Greenlee
• Model / Cat. No.: 652
• Sheave Diameter: 18 in (457.2 mm)
• Minimum Bend Radius: 7 in (177.8 mm)
• Groove Radius: R 3.00 in
• Sheave Width: 5 in (127 mm)
• Sheave Material: Aluminum alloy with self-lubricating bearings
• Frame: Welded steel
• Hook: Forged steel, closure-type, 1 in (25.4 mm) opening
• Maximum Rated Capacity: 4,000 lb (17.7 kN)
• Compatible Pullers: Greenlee Easy Tugger and Tugger
• Includes: 16797 Sheave Pin; 50302 Sheave Pin Clip (2); 153 Sheave; 16798 Sheave Bushing (2); 16801 Yoke Frame
• Weight: ~25 lb (11.3 kg)
• UPC: 783310153269
• Greenlee Benefit: 4,000 lb hook sheave that redirects cable on a 7" radius without damaging the jacket, and hangs in seconds with a forged closure hook
