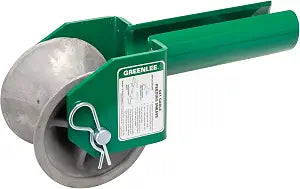

SHEAVE,CABLE FEEDING 3"

Product Features

• Cable feeding sheave for 3" conduit — makes cable pulling setup easier
• Yoke frame slides into the end of the conduit and holds the sheave, so cable being fed in rolls smoothly over the sheave instead of dragging on the conduit lip
• 5" (127 mm) wide aluminum alloy sheave with self-lubricating bearings — no greasing schedule
• Split tube design allows easy removal after the cable is installed
• Protects cable jacket at the feed point, where sidewall pressure and abrasion are worst
• Rated by pull angle, from 6,050 lb at 15° down to 1,550 lb at 90°
• Standard Series ProPress® V1 ring kit — four press rings covering 1/2" through 1-1/4", plus the V1 actuator and carrying case
• ProPress® rings permit access in tighter spaces and complement your existing RIDGID® jaw sets
• Patented swiveling feature lets the tool connect to the ring at any angle relative to the tubing — the press tool can sit at ±90° to the tube
• Designed in conjunction with ProPress® system fittings, ensuring total system compatibility
• Presses copper and stainless steel tubing
• Flameless connections eliminate the need for hot work permits
• Works with RIDGID® Standard Series press tools: CT-400, 320-E, RP 330-B, RP 330-C, RP 340, RP 350
• Carrying case keeps the four rings and actuator together
• Genuine RIDGID OEM tooling

Specifications

• Style: Cable Feeding Sheave
• Brand: Greenlee
• Catalog No.: 441-3
• Series: 441
• Conduit Size: 3 in
• Sheave Width: 5 in (127 mm)
• Sheave Material: Aluminum alloy
• Sheave Outside Diameter: 6 in
• Bearings: Self-lubricating
• Tube: Split, for removal after installation
• Capacity at 15°: 6,050 lb (26.90 kN)
• Capacity at 30°: 3,150 lb (14.00 kN)
• Capacity at 45°: 2,200 lb (9.70 kN)
• Capacity at 60°: 1,800 lb (8.00 kN)
• Capacity at 75°: 1,600 lb (7.10 kN)
• Capacity at 90°: 1,550 lb (6.80 kN)
• Weight: 14 lb (6.4 kg)
• Alternate Catalog Numbers: 37-4160, 37-7874
• UPC: 0783310301882
• Greenlee Benefit: Slides straight into 3" conduit and comes out through the split tube when you're done — 6,050 lb at 15° on self-lubricating bearings
• Style: Press Ring Kit (ProPress® Standard Series)
• Brand: RIDGID
• Catalog No.: 27423
• Series: Standard Series, V1
• Ring Sizes Included: 1/2 in, 3/4 in, 1 in, 1-1/4 in
• Number of Rings: 4
• Actuator: V1 (28033)
• Material Application: Copper and stainless steel tubing
• Swivel: Patented, ±90° relative to tubing
• Compatible Tools: RIDGID Standard Series — CT-400, 320-E, RP 330-B, RP 330-C, RP 340, RP 350
• Not Compatible With: RIDGID Compact Series tools (100-B, RP 200-B, RP 210-B, RP 251) or Milwaukee M12 FORCE LOGIC
• Includes: 1/2" press ring (27998), 3/4" press ring (28003), 1" press ring (28008), 1-1/4" press ring (28013), V1 actuator (28033), carrying case #1 (28028)
• Press Tool: Not included
• UPC: 095691274236
• RIDGID Benefit: Four ProPress rings and a swiveling V1 actuator that gets into places a jaw can't — flameless joints, no hot work permit
