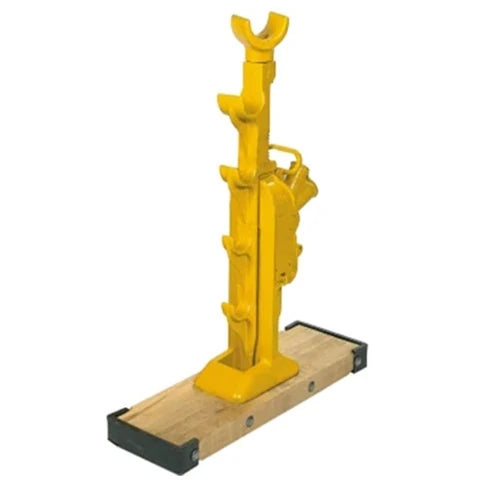

SIMPLEX JACK STAND

Product Features

• Mechanical reel jack designed to lift and support cable, wire, and conductor reels for controlled pay-out on the jobsite
• Double-lever sockets allow jacking in close quarters and confined spaces
• Multiple-tooth pawls for added strength and safety under load
• Drop-forged, heat-treated alloy steel components for durability and long service life
• Adjustable spring links for added serviceability; plated springs resist corrosion
• Five spindle hooks: top hook fits up to 3-1/2" spindles, next fits up to 3" spindles, and the lowest three fit up to 2-3/8" spindles
• Tough laminated hardwood base for extra strength; recommended for use on firm surfaces
• Precision machined throughout; meets or exceeds ANSI/ASME B30.1 safety standards
• Genuine RIDGID coupon-retaining 1/4" pilot drill for the RT1000 and RT3422 pipe tapping tools
• Coupon-retaining design captures the metal slug (coupon) so it won't drop into the pipe
• Prevents medium contamination and possible damage to downstream equipment
• For use when cutting 3/4" to 1-1/4" taps
• Solid construction for RIDGID-grade durability and reliability
• Backed by RIDGID's Full Lifetime Warranty against defects

Specifications

• Style: Mechanical Reel Jack
• Brand: Simplex (Enerpac)
• Model / Part Number: CR321B (321B Reel Jack)
• Series: CR Reel Jacks
• Lifting Capacity: 10 ton (per some sellers) / 20 ton per Simplex-Enerpac (VERIFY — see note)
• Stroke: 14 in (355.6 mm)
• Spindle Hooks: 5 (up to 3-1/2", 3", and 2-3/8")
• Construction: Drop-forged, heat-treated alloy steel; laminated hardwood base
• Weight: ~129.83 lb
• Lever Bar: Steel Lever Bar SLB60 (sold separately)
• Surface: For use on firm surfaces
• Sold As: Individually (not as a pair)
• Standards: ANSI/ASME B30.1; CE compliant
• Simplex Benefit: Close-quarters double-lever reel jacking with 5-hook spindle range and forged-steel durability
• Style: Coupon-Retaining Pilot Drill (Tapping Tool Accessory)
• Brand: RIDGID
• Part Number: 76027
• Pilot Size: 1/4 in
• Tap Range Served: 3/4" to 1-1/4" taps
• Function: Retains coupon (slug) to prevent it dropping into the pipe
• Compatibility: RIDGID RT1000 & RT3422 Tapping Tools
• Includes: (1) Pilot Drill
• Warranty: Full Lifetime
• Country of Origin: Canada
• UPC: 095691760272
• RIDGID Benefit: Captures the coupon during tapping to prevent line contamination and downstream damage
