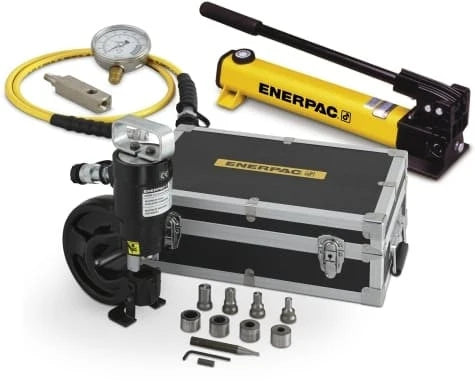

SP35 Hyd Punch, w/ P392 Hand Pump

Product Features

• Complete 35-ton hydraulic punch set — punch, four round punch and die sets, and hand pump in one kit
• Punches burr-free holes through mild steel up to 1/2" (13 mm) thick — cleaner and faster than drilling
• Includes the Enerpac SP35 single-acting hydraulic punch and P-392 two-speed hand pump
• Four standard round punch and die sets cover 3/8", 1/2", 5/8", and 3/4" bolt sizes — 0.44", 0.56", 0.69", and 0.81" holes
• Hand pump means no compressor, no generator, and no power at the work location required
• Long-life Enerpac single-acting, spring-return cylinder design
• 10,000 psi working pressure
• SPK10 tool kit included with all 35-ton punches for removing and installing punches in the head
• Accepts oblong and square dies (sold separately) for non-round holes
• Also works with air-powered and electric hydraulic pumps if you later want to speed up the cycle
• Punches a wide range of materials: mild steel, boilerplate, hot and cold rolled carbon, CORTEN, and 302/304/316 stainless

Specifications

• SKU: ENESTP35H
• Price: 7218.95
• Weight: ~ 62.00 lbs
• Dimensions: 20.00 L x 12.00 W x 8.00 H (inch)
• Style: Hydraulic Punch and Die Set with Hand Pump
• Brand: Enerpac
• Model / Cat. No.: STP35H
• Enerpac Part No.: 804016
• Capacity: 35 tons
• Working Pressure: 10,000 psi
• Cylinder Type: Single-acting, spring return
• Punch Included: SP35 hydraulic punch

Order today for same-day pickup from our Houston or San Antonio locations.

We offer same-day pickup at both of our retail locations, as well as delivery upon request.
