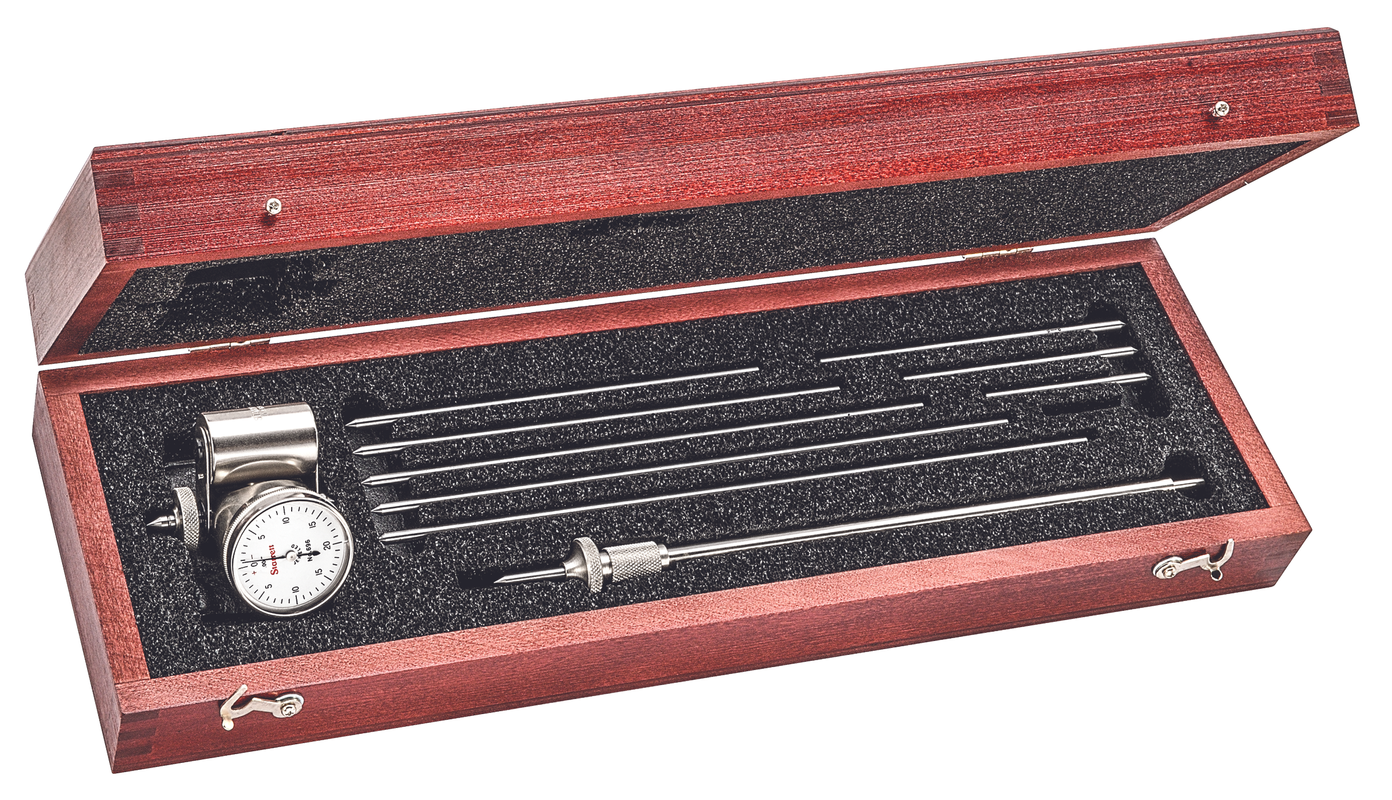

Starrett No. 696Z Crankshaft Distortion Dial / Strain Gage

Starrett No. 696Z Crankshaft Distortion Dial / Strain Gage

Product Features

• Checks bearing alignment and shaft deflection without dismantling the engine
• Inside measuring gage that reads the distortion of crankshaft webs — a direct indication of misalignment or excessive bearing wear
• For diesel engine shafts and center crankshafts of any engine or compressor; also usable as a strain gage on engine frames while running
• Comparing top and bottom readings reveals cylinder/frame misalignment that causes over-stress and frame cracking
• Supplied with balancing attachment

Specifications

• Style: Crankshaft Distortion Dial / Strain Gage
• Range: 2-3/8 to 18 in
• Includes: Balancing attachment
• Brand: Starrett
• Series: No. 696
• Uses: Engine bearing alignment, shaft deflection, frame strain measurement
• Category: Indicators & Gages
