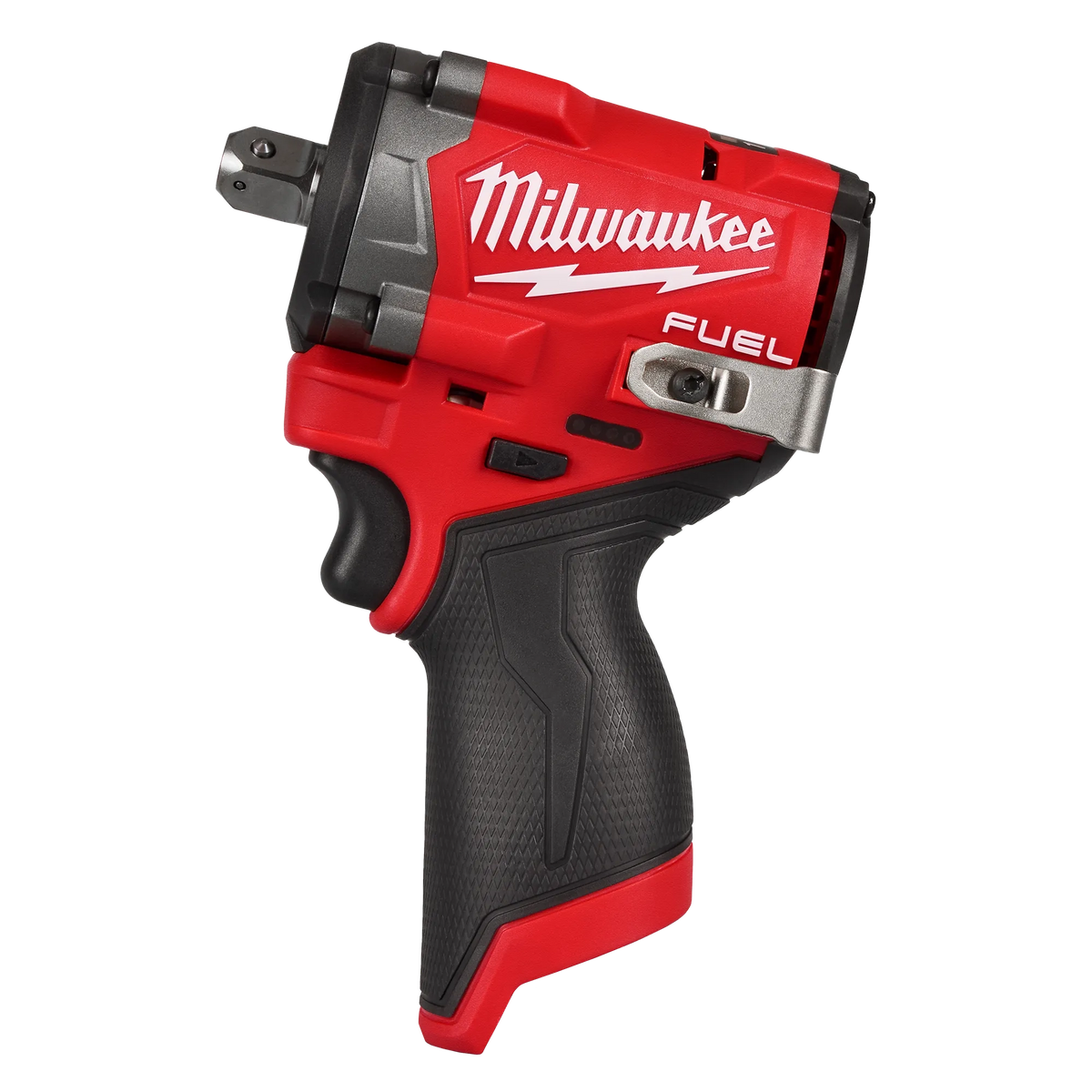

Stubby 1/2" Impact Pin

Product Features

• Delivers up to 550 ft-lbs of nut-busting torque — enough breakaway power to remove the most corroded and stubborn fasteners
• Pin detent anvil locks sockets securely in place — the safer choice for overhead work, wheel service, and anywhere a dropped socket is a problem
• The most power, lightest weight, and most compact stubby in the lineup, with 50% faster application speeds
• POWERSTATE™ brushless motor delivers 0-3,000 RPM in a sub-compact frame
• Only 2.2 lb bare tool — less fatigue across a full work week, and easier overhead and suspension work
• Fits into tight spaces where larger impacts can't reach without extra accessories or disassembling components
• 4-Mode DRIVE CONTROL™ provides greater control over output speed and power, with single-handed mode changes
• AUTO SHUT-OFF™ applies no more than 15 ft-lbs in forward for hand-tight applications, preventing overtightening
• Bolt Removal mode slows RPM once the fastener breaks free, keeping hardware under control
• Mode speeds: 0-930 / 0-2,100 / 0-3,000 / 0-1,300 RPM
• Mode impact rates: 0-1,500 / 0-3,000 / 0-3,300 / 0-3,300 IPM
• New Battery Isolation System secures the battery connection and reduces vibration transmitted to the pack
• Tri-LED work lights deliver high-definition lighting with fewer shadows
• Compatible with all M12™ batteries and chargers — bare tool, battery and charger sold separately

Specifications

• Brand: Milwaukee
• Catalog Number: 2563P-20
• System: M12 FUEL™ (12V cordless)
• Drive Size: 1/2" with pin detent
• Max Nut-Busting Torque: 550 ft-lbs
• Speed: 0-930 / 0-2,100 / 0-3,000 / 0-1,300 RPM (4-Mode DRIVE CONTROL™)
• Impact Rate: 0-1,500 / 0-3,000 / 0-3,300 / 0-3,300 IPM
• Auto Shut-Off Torque: No more than 15 ft-lbs (Mode 4 forward)
• Tool Weight: 2.2 lb (bare tool)
• Work Light: Tri-LED
• Includes: Bare tool (battery and charger sold separately)

Order today from our Houston and San Antonio locations.

This item is a special order and is not currently on the shelf. Contact us to confirm the current lead time. We will arrange pickup at either of our retail locations, or delivery on request.
