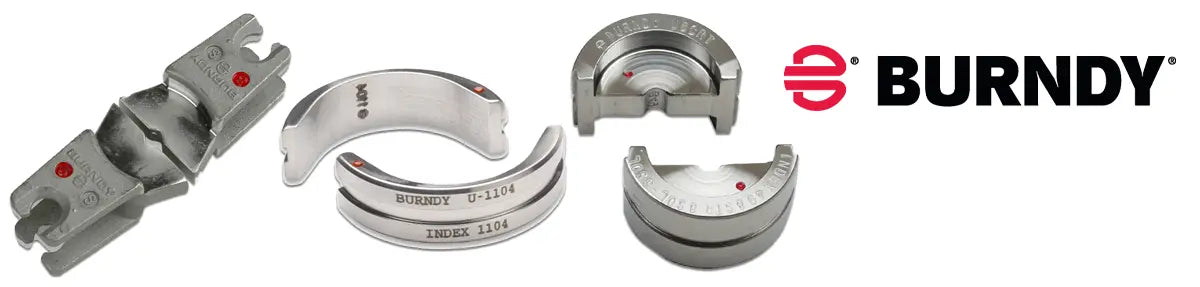

U-DIE KIT AL

Product Features

• Complete 12-ton U-die kit with 15 color-coded die sets covering aluminum #6 AWG through 750 kcmil
• Aluminum counterpart to the UDIEKITCU; for use on aluminum YA, YS, YA-A and YS-A HYLUG and HYLINK terminals and splices
• Dies are color-coded to match BURNDY connector colors for fast, error-free selection
• Made of stainless steel for corrosion resistance and repeatable reliability
• Every die embosses the BURNDY B and die index number into the crimp for easy inspection and UL/ANSI verification
• Compatible with Y35, Y39, Y750 series, PAT750-18V series, Y46, and PAT46-18V (with PUADP1 adapter) tools
• Organized in the PT29291 metal die case
• Delivers UL Listed connections as part of the BURNDY Engineered System

Specifications

• SKU: BURUDIEKITAL
• Price: 1860.49
• Weight: 8 lb
• Dimensions: 11.25 in x 7.5 in x 3 in (PT29291 case)
• Brand: BURNDY
• Catalog Number: UDIEKITAL
• Type: U-Die Kit, Aluminum (Twin U-Style)
• Crimp Force Capacity: 12 ton
• Number of Die Sets: 15
• Material Crimped: Aluminum #6 AWG - 750 kcmil
• Die Material: Stainless Steel
• Case: PT29291
