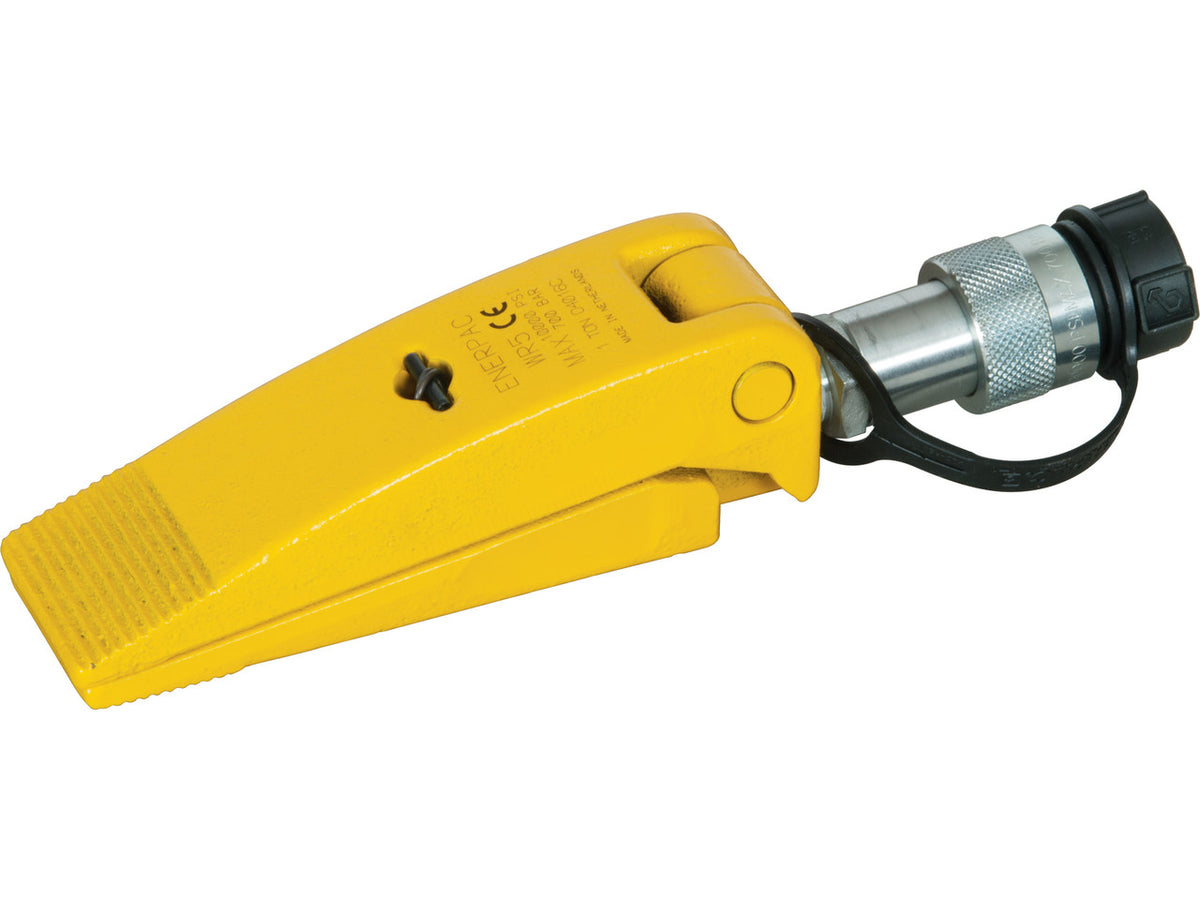

Wedgie, 1 Ton

Product Features

• Compact hydraulic wedge spreader ("Wedgie") for prying and separating in tight spaces
• Wedge-shaped tip enters a narrow gap and opens it under hydraulic force
• 1 ton (8.9 kN) maximum spreading force
• Spreads up to 3.7 in. (94 mm)
• Slim 0.50 in. tip clearance starts in gaps too narrow for most spreaders
• Single-acting design with spring return — no return line needed
• Suited to flange separation, alignment, and general industrial maintenance work
• Steel construction in Enerpac Yellow finish
• Works with Enerpac 10,000 psi single-acting hand pumps and power units
• Part of Enerpac's WR-Series wedge-style flange spreader line

Specifications

• Style: Hydraulic Wedge Spreader (Wedgie Spread Cylinder)
• Brand: Enerpac
• Model / Cat. No.: WR5 (also listed as WR-5)
• Series: WR
• Product Line: Industrial Tools / Bolting Tools
• Spreading Capacity: 1.00 imperial ton (8.9 kN)
• Maximum Spread: 3.7 in (94 mm)
• Tip Clearance: 0.50 in
• Cylinder Type: Single-acting, spring return
• Power Source: Hydraulic
• Maximum Operating Pressure: 10,000 psi (700 bar) rated
• Working pressure limit: system pressure must be limited to half the rated pressure — 5,000 psi (350 bar) at 1-ton max load
• Finish: Enerpac Yellow
• Weight: 5.0 lb
• Country of Origin: Not listed — verify
• HTS Code: 8479899599
• ECCN: EAR99
• UPC: Not listed on source page — verify
• Warranty: Enerpac warranty applies — verify current terms
• Enerpac Benefit: 0.50" tip that slips into a tight gap and opens it to 3.7" with 1 ton of hydraulic force, spring-returning on a single-acting line
